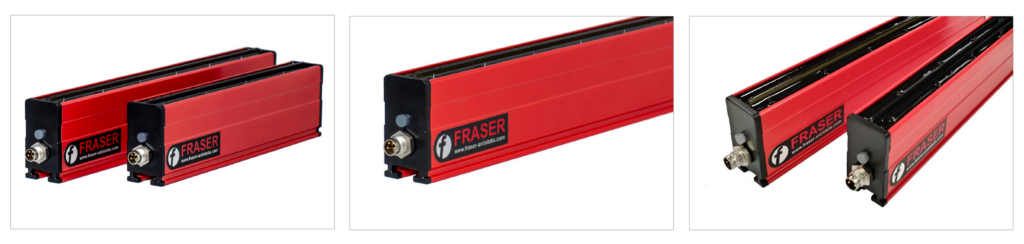

3024 COMPACT STATIC ELIMINATOR

The 3024 Compact is a short range static eliminator that brings the benefits of 24 V DC technology to smaller applications.

More About The Bar

  • Operating distance 20 – 150 mm, best performance between 20 – 50 mm
  • 20 mm emitter pitch for intense ionisation
  • 100 % coverage: active length = overall length of the bar
  • Shockless, resistively coupled tungsten emitters for unlimited life
  • 24 V DC operation, with up to 7.5 kV ionising power supply integrated into bar
  • LED indication of operational status of bar and whether it needs cleaning
  • Duplicate remote signals for PLC or to power external lamps, relays
  • Remote on/off switching

Dimensions: 22 mm x 41.5 mm (W x H) | Available Lengths: 150 mm and 200 mm.
