Uteco Converting – Coaters & Laminators

These machines are the result of a total synergy between our engineering expertise and technological systems, which have already been extensively proven in other fields.

Uteco offers various laminating and coating machines intended for the production of food packaging, products for pharmaceuticals, construction, such as roofing substrate, aluminum-paper laminates for the inside of cigarette packs, and for the production of adhesive tape, adhesive labels. These are machines that can work on different substrates such as film, paper, aluminum, cardboard, PVC.

All of Uteco’s laminating machines feature an integrated solvent and solventless or water-based multi-process coating and laminating system. They have a highly flexible design that can be customized by choosing from optional innovative equipment and technologies.

Extrusion Coating

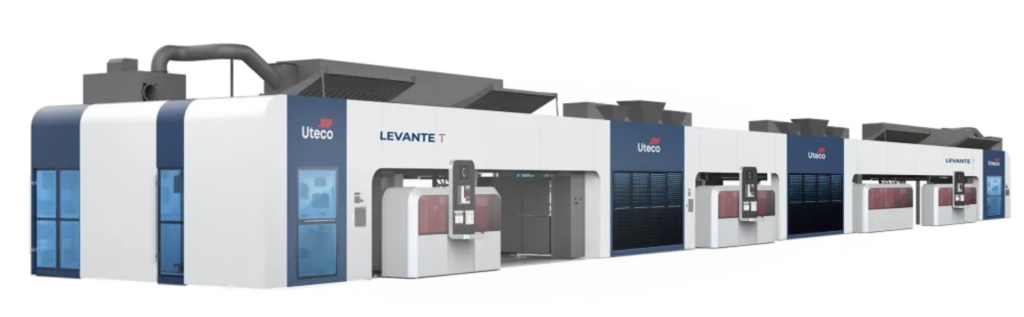

Levante

The New Cutting-Edge Extrusion Coating Machine by Uteco, Powered by Gap Technology.

  • Max Material Width – 2500 mm
  • Max Working Speed – 750 mpm
  • Max Extruder Diameter – 160 mm
  • Max Chill Roll Diameter – 1100 mm

Solventless

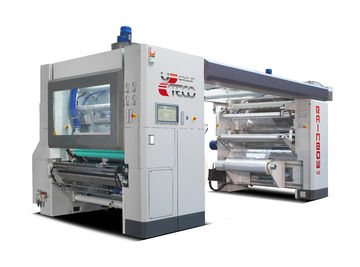

Rainbow 4.0

The Best of Solventless Lamination for Food Packaging

Technical Specifications

  • Max/Min material width – 1050 – 1450 mm
  • Max Coating Width – 1000 – 1400 mm
  • Max Coating Speed – 500 m/min
  • Unwind/Rewind Max Diameter – 1000 mm
  • Film Tension – 3 – 40 daN
  • Max Reel Weight – 1500 kg
  • Min Size – 6,2 x 2,8 x 2,7 m
  • Min Coating Width – 500 – 730 mm

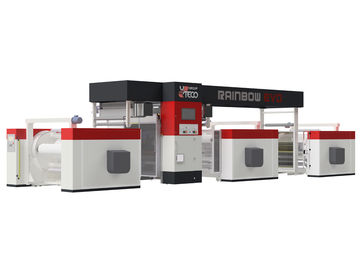

Rainbow EVO

The New Cutting-Edge Extrusion Coating Machine by Uteco, Powered by Gap Technology.

Technical Specifications

  • Max/Min material width – 750 – 1550 mm
  • Max Coating Width – 1500 mm
  • Min Coating Width – 730 mm
  • Max Coating Speed – 500 m/min
  • Unwind/Rewind Max Diameter – 1000 mm
  • Unwind Tension – 2 – 40 daN
  • Rewinder Tension – 4 – 50 daN
  • Max Reel Weight – 1500 kg
  • Min Size – 13,8 x 3,7 x 6,1 m

Multitechnology

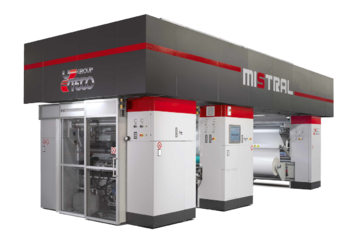

Mistral

Modern and Compact Laminator with Multi Process Coating System

Technical Specifications

  • Max/Min material width – 750 – 1550 mm
  • Max Coating Width – 1500 mm
  • Min Coating Width – 730 mm
  • Max Coating Speed – 500 m/min
  • Unwind/Rewind Max Diameter – 1000 mm
  • Rewinder Tension – 4 – 50 daN
  • Max Reel Weight – 1500 kg
  • Min Size – 13,8 x 3,7 x 6,1 m

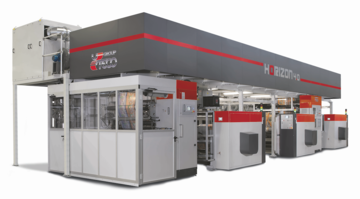

Horizon 4.0 Duplex

Flexible and Taylor-Made Coating and Laminating Technology

Technical Specifications

  • Max/Min material width – 750 – 1550 mm
  • Max Coating Width – 1500 mm
  • Min Coating Width – 730 mm
  • Max Coating Speed – 500 m/min
  • Unwind/Rewind Max Diameter – 1200 mm
  • Unwinder Tension – 2 – 40 daN
  • Rewinder Tension – 4 – 50 daN
  • Max Reel Weight – 1500 kg
  • Min Size – 17,3 x 5,2 x 6,6 m
